HS-R023F

Spoke Hole
20H
Axle Dim.
ø9(ID5)*100*110mm
Axle O.D.
ø17 mm
Axle Material
Alloy 7075 T6
Hub Material
Alloy 6061 T6
Flange P.C.D.
36.5/46.2mm
Sealed Cartridge Bearings
2pcs
Weight
110g
QTY

DETAILS

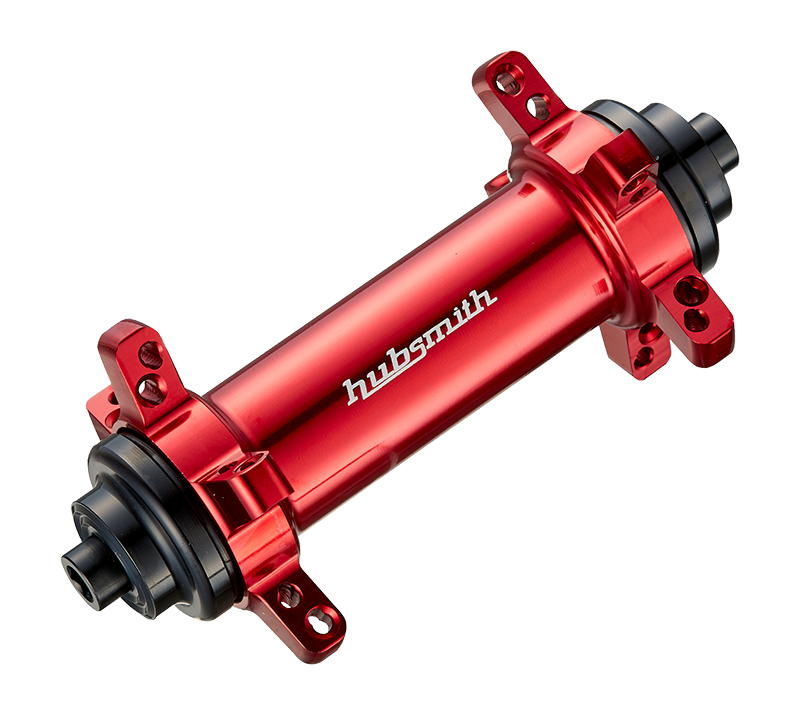

HS-R023

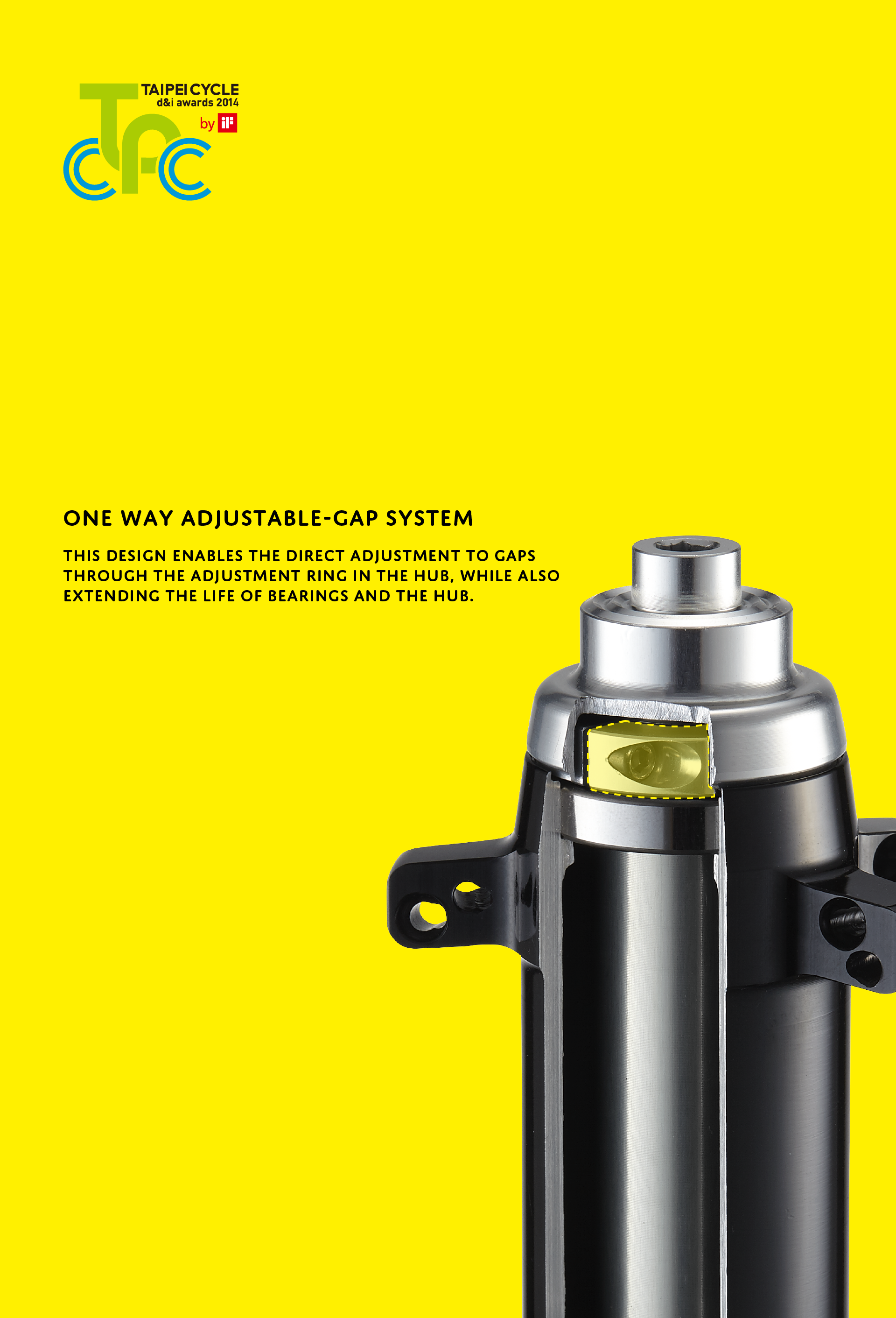

The HS-R023 hubs fitted with Hubsmith latest patent technology "ONE WAY ADJUSTABLE-GAP SYSTEM". After a bike has been ridden for long time, bearings from the hub will gradually be worn, resulting in gaps that can make wheels deflective, and the hub and bearings can also be easily damaged! This design enables the direct adjustment to gaps through the adjustment ring in the hub, while also extending the life of bearings and the hub. Through our experience and precision calculations, both HS-R023 front and rear hub require only one specification length of the spokes, which can facilitate customers to build wheels.
