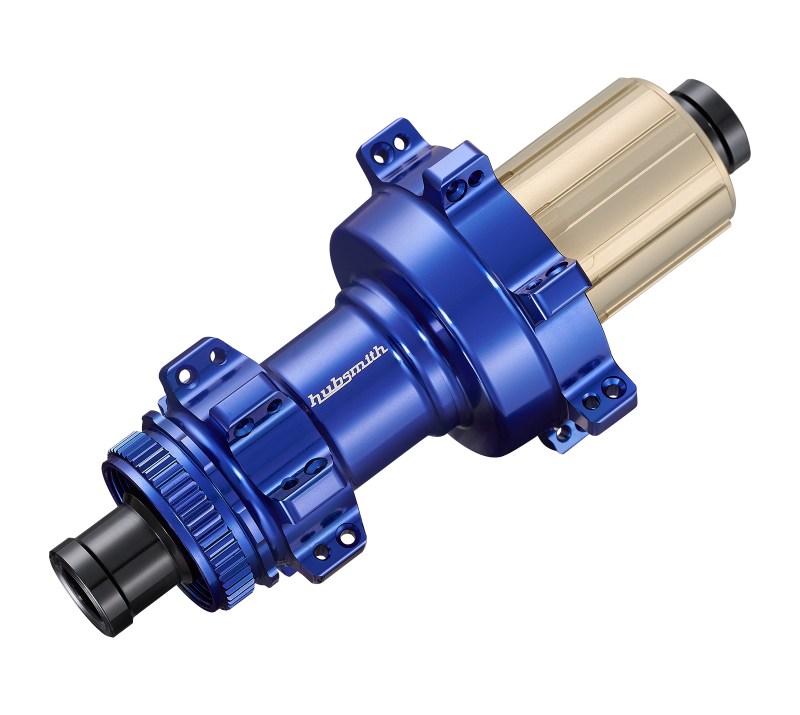

HS-F013R

Spoke Hole
28H
OLD.
148mm
Axle Material
Alloy 7075 T6
Hub Material
Alloy 6061 T6
Flange P.C.D.
41/62mm
Sealed Cartridge Bearing
4pcs
FREEHUB BODY
Zero-time planar tooth ratchet (80T)
Weight
275g
QTY

DETAILS

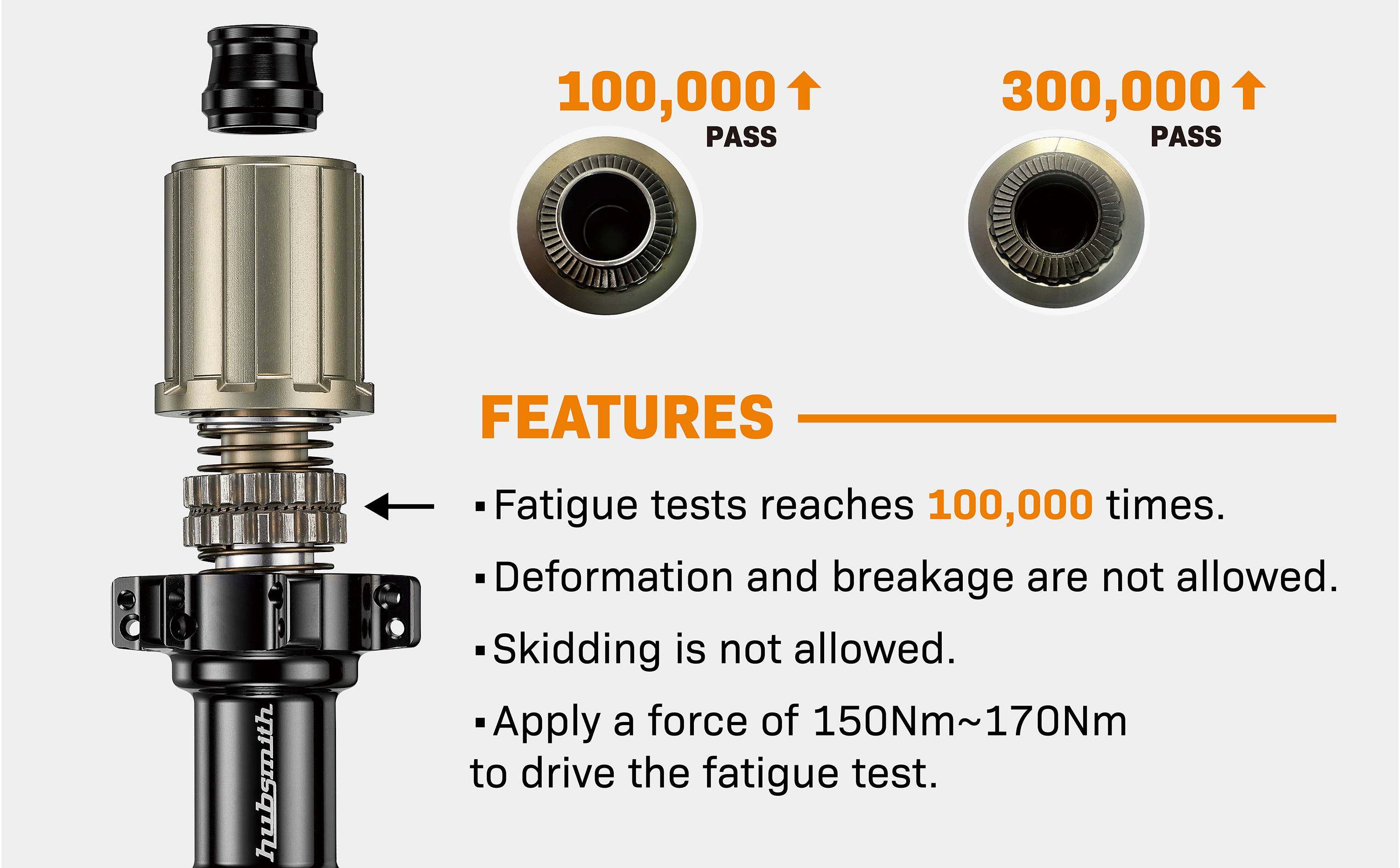

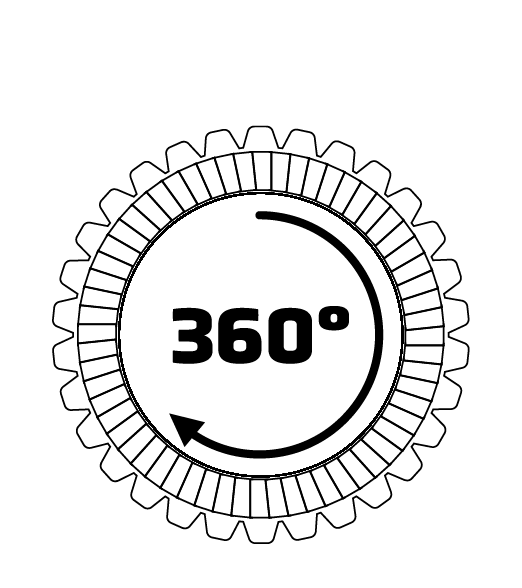

New Zero-time Planar Tooth Ratchet

The Hubsmith R&D team launched a new zero-time planar tooth ratchet for the ratchet body drive structure. During the 360-degree driving process, the zero-time planar tooth ratchet body has two parallel tooth surfaces (48 teeth/80 teeth) to achieve a zero-gap occlusal action at the same time. The complete occlusal and propulsion allows the driving performance to be more directly output. In addition, the zero-time planar tooth-type occlusal structure is more durable than traditional pawls.
