HS-RWC01R

Spoke Hole
8-16/18/20/24H
Axle Dim.
ø10(ID5)*130*169mm
Axle O.D.
ø12mm - ø15mm
Axle Material
Alloy 7075 T6
Hub Material
Alloy 6066 T6
Flange P.C.D.
35mm - 49mm
Sealed Cartridge Bearings
4pcs
Weight
221g (NO NEED TO USE QUICK RELEASE)
QTY

DETAILS

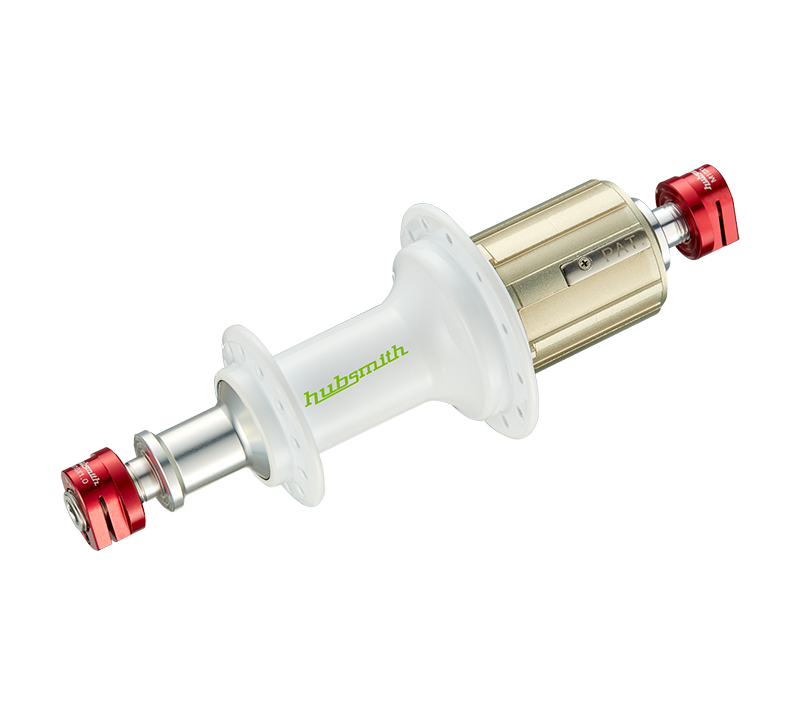

HS-RWC01

Fit our simple and unique design cap (Cinch-Cap) on the hub axle. Tighten the hex screw on the nuts (Cinch-Nut) to increase tension to the cap (Cinch-Cap) thereby locking the axle in place to prevent the nut from loosening. Simple/Fast/Secure! Hubsmith's patented HubCinch allows users to safely and securely mount and lock a wheel on any bicycle. No need for bulky general quick release! Hubsmith's freehub body construction adds a hard steel plate screw mounted on the spline surface to prevent localized wear to the spline and extend overall product life. Hubsmith's hub streamline design helps the wheel cast off water from the hub and optimized machined spokes holes increases the contact area between the flange face and the spokes head.
